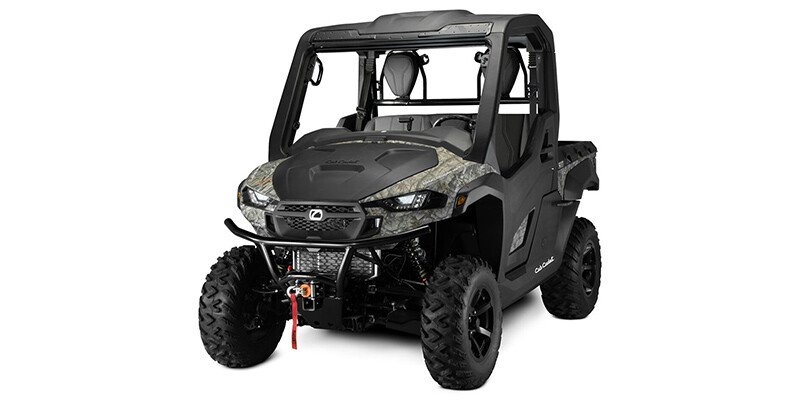

2025 Challenger MX 750 Base

2025 Challenger MX 750 Base

Description

  • 3,500 lbs. Winch towing capacity
  • Efficient electronic fuel injection offers optimal performance
  • Powerful 735 cc 4-stroke engine for superior functionality

Specifications

  • ENGINE
    add remove
    • Engine Type
      Single-Cylinder
    • Cylinders
      1
    • Engine Stroke
      4-Stroke
    • Horsepower (bhp)
      37.5
    • Valves
      5
    • Valves Per Cylinder
      5
    • Valve Configuration
      OHV
    • Displacement (cc)
      735
    • Bore (mm)
      102
    • Stroke (mm)
      90
    • Compression Ratio
      9.7:1
  • TRANSMISSION
    add remove
    • Transmission Type
      Continuously Variable (CVT)
    • Hi / Low Range
      Yes
    • Primary Drive (Rear Wheel)
      Shaft
    • Primary Drive (Engine / Transmission)
      Belt
    • Primary Drive (Front Wheel)
      Shaft
    • Reverse
      Yes
  • DRIVE LINE
    add remove
    • Driveline Type
      Selectable 4X2 / 4X4
    • Number Of Driveline Modes
      2
    • Rear Unlocking Differential
      Yes
    • Rear Solid Axle
      No
    • Differential Lock Location
      Front / Rear
  • TECHNICAL SPECIFICATIONS
    add remove
    • Width (in)
      61.8
    • Height (in)
      76.8
    • Wheelbase (in)
      76.8
    • Front Tread Width (in)
      51.6
    • Rear Tread Width (in)
      50.8
    • Turning Radius (ft)
      14.1
    • Ground Clearance (in)
      12
    • Dry Weight (lbs)
      1456
    • Payload Capacity (lbs)
      1000
    • Towing Capacity (lbs)
      1200
    • Fuel Capacity (gal)
      7.6
    • Wet Weight (lbs)
      1646
  • SUSPENSION
    add remove
    • Front Suspension Type
      Independent Double A-Arm
    • Front Travel (in)
      9
    • Front Adjustable Fork Pre-Load
      Yes
    • Rear Suspension Type
      Independent Double A-Arm
    • Rear Travel (in)
      8
    • Rear Adjustable Shock / Spring Pre-Load
      Yes
    • Number Rear Shock Absorbers
      2
    • Rear Stabilizer Bar
      Yes
    • Air Adjustable
      No
    • Front Stabilizer Bar
      Yes
  • WHEELS & TIRES
    add remove
    • Wheels Composition
      Aluminum
    • Front Tire (Full Spec)
      26 x 9-14
    • Rear Tire (Full Spec)
      26 x 11-14
  • STORAGE
    add remove
    • Bed Length (in)
      34
    • Bed Width (in)
      46
    • Bed Height (in)
      11
    • Bed Capacity (lbs.)
      500
    • Cargo Bed Tilt
      Yes
    • Integral Tie-Down Hooks
      Yes
  • Color options
    add remove
    • Camo
