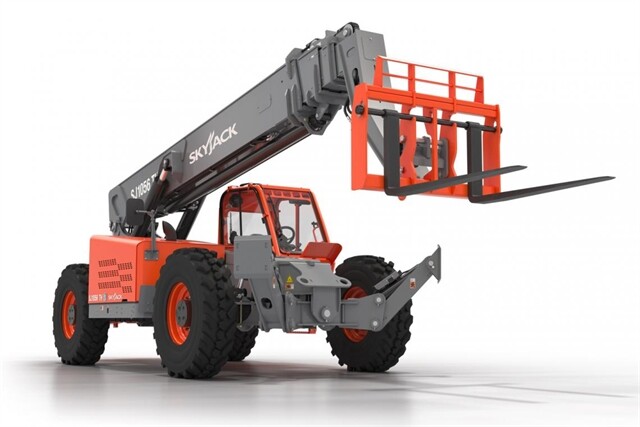

10k

Overall Width    8’ 5” (2.56 m)

Ground Clearance    19” (48.3 cm)

Turning Radius (Outside)    153” (3.89 m)

Fuel Tank    35 gal. (132 L)

Hydraulic Reservoir    43.85 gal. (166 L)

Maximum Lift Capacity    10,000 lbs (4,535 kg)

Maximum Lift Height    56’ 3” (17.14 m)

Maximum Forward Reach    42’ 6” (12.85 m)

Rated Lift Capacity @ Maximum Height    4,000 lbs (1,814 kg)

Rated Lift Capacity @ Maximum Reach    400 lbs (181 kg)

Rated Lift Capacity @ Maximum Height (on outriggers)    6,000 lbs (2,722 kg)

Rated Lift Capacity @ Maximum Reach (on outriggers)    3,000 lbs (1,361 kg)

O/A Length - Less Forks    22’ 2” (6.75 m)

Overall Height - Stowed    8’ 1” (2.47 m)

Operating Weight    33,336 lbs (15,121 kg)

Engine    74hp / 287 lb-ft Deutz TCD 3.6L T4F

Max Travel Speed - Forward    15 mph (24 km/h)

Transmission    Dana Powershift, 3 Speeds F/R

Axles    Dana

Steering    3 mode (Front Wheel, 4 Wheel, Crab)

Tires    Foam Filled 14 x 24 16PR Grip Lug

Drawbar Pull    20,000 lbs
