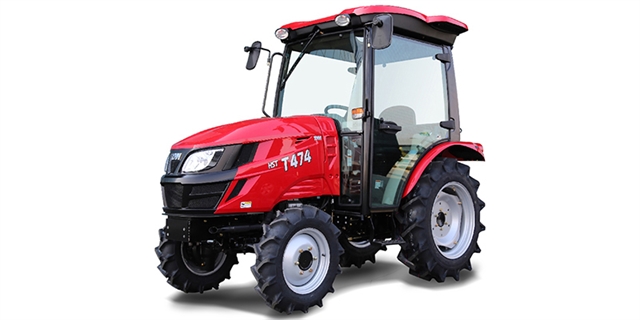

TYM T474 CAB (HST)

CALL FOR BEST PRICE

MSRP: $34,500 USD

194 people have recently viewed it.
Check Availability Hi, my name is and I'm interested in this 2024 TYM Series 2 Compact T474 CAB (HST) - CALL FOR BEST PRICE . I'm in the area and you can reach me at or on my phone at .
  • Status:
    New
  • Vehicle:
    2024 TYM T474 CAB (HST)
  • Model Number:
    T474CAB
  • Location:
    Wise Honda
  • Warranty:
    Manufacturer's w/ Extended Available

BRAKES

  • Front Brake Type:
    Wet Disc
  • Rear Brake Type:
    Wet Disc

DRIVE LINE

  • Differential Lock Location:
    Rear
  • Driveline Type:
    4X4

ENGINE

  • Aspiration:
    Natural
  • Carburetion Type:
    Fuel Injected
  • Cooling:
    Liquid
  • Cylinders:
    4
  • Displacement (ci):
    139.5
  • Displacement (l):
    2.286
  • Engine Brand Name:
    Kukje
  • Engine Model Code:
    A2300N2
  • Fuel Type:
    Diesel
  • Horsepower (bhp):
    48.3
  • Horsepower (kW):
    36
  • Horsepower RPM:
    2600

EXTERIOR

  • Platform Layout:
    Full Cab

HYDRAULIC SYSTEM

  • Implement Pump Output (gpm):
    7.7
  • Implement Pump Output (lpm):
    29
  • Number of Standard Remote Valves:
    1
  • Pump Capacity (gpm):
    11.9
  • Pump Capacity (lpm):
    45.1
  • Rear 3-Point Hitch Category:
    Category 1
  • Rear 3-Point Hitch Lift Capacity (kgs):
    684
  • Rear 3-Point Hitch Lift Capacity (lbs):
    1508
  • Steering Pump Output (gpm):
    4.3
  • Steering Pump Output (lpm):
    16.1

INSTRUMENTATION

  • Fuel Level Warning Type:
    Gauge

PTO

  • PTO Horsepower (bhp):
    35.9
  • PTO Horsepower (kW):
    26.4
  • PTO Location(s):
    Rear
  • PTO Type:
    Independent
  • Rear PTO RPM:
    540

STEERING

  • Steering Type:
    Power

TECHNICAL SPECIFICATIONS

  • Dry Weight (kg):
    1636
  • Dry Weight (lbs):
    3607
  • Fuel Capacity (gal):
    9
  • Fuel Capacity (l):
    34
  • Ground Clearance (in):
    12.8
  • Ground Clearance (mm):
    325
  • Height (in):
    94.5
  • Height (mm):
    2400
  • Length (ft):
    10.92
  • Length (ft/ft):
    10
  • Length (ft/in):
    11
  • Length (in):
    131
  • Length (mm):
    3320
  • Turning Radius (ft):
    8.9
  • Turning Radius (m):
    2.7
  • Wheelbase (in):
    69.7
  • Wheelbase (mm):
    1770
  • Width (in):
    54.5
  • Width (mm):
    1385

TRANSMISSION

  • Clutch Type:
    Dry
  • Maximum Forward Speed (kph):
    24
  • Maximum Forward Speed (mph):
    14.9
  • Number Of Speeds (Forward):
    12
  • Number Of Speeds (Reverse):
    12
  • Transmission Type:
    Synchro-Shift

WHEELS & TIRES

  • Front Tire (Full Spec):
    10 - 16.50
  • Front Tire Width:
    10
  • Front Wheel Diameter:
    16.5
  • Rear Tire (Full Spec):
    43 x 16.00 - 20
  • Rear Tire Diameter (in):
    43
  • Rear Tire Width:
    16
  • Rear Wheel Diameter:
    20
  • Tread Type:
    Industrial
  • Wheels Composition:
    Steel

Our Location

Wise Honda
2803 S US-287
Decatur, TX 76234
