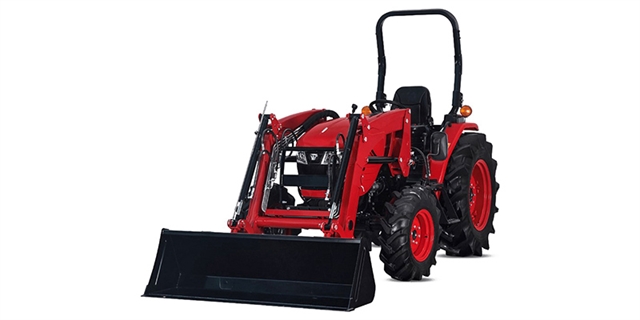

TYM 4820H

JUST ARRIVED

MSRP: $31,500 USD

154 people have recently viewed it.
Check Availability Hi, my name is and I'm interested in this 2024 TYM Series 3 Compact 4820H - JUST ARRIVED . I'm in the area and you can reach me at or on my phone at .
  • Status:
    New
  • Vehicle:
    2024 TYM 4820H
  • Model Number:
    4820H
  • Color:
    Red
  • Location:
    Wise Honda
  • Warranty:
    Manufacturer's w/ Extended Available

BRAKES

  • Front Brake Type:
    Wet Disc
  • Rear Brake Type:
    Wet Disc

DRIVE LINE

  • Differential Lock Location:
    Rear
  • Driveline Type:
    4X4

ENGINE

  • Aspiration:
    Natural
  • Carburetion Type:
    Fuel Injected
  • Cooling:
    Liquid
  • Cylinders:
    4
  • Displacement (ci):
    139.5
  • Displacement (l):
    2.287
  • Engine Brand Name:
    Kukje
  • Engine Model Code:
    A2300N2
  • Fuel Type:
    Diesel
  • Horsepower (bhp):
    48
  • Horsepower (kW):
    36
  • Horsepower RPM:
    2600

EXTERIOR

  • Platform Layout:
    Open

HYDRAULIC SYSTEM

  • Implement Pump Output (gpm):
    4.4
  • Implement Pump Output (lpm):
    16.6
  • Number of Optional Remote Valves:
    4
  • Pump Capacity (gpm):
    14.3
  • Pump Capacity (lpm):
    54.1
  • Rear 3-Point Hitch Category:
    Category 1
  • Rear 3-Point Hitch Lift Capacity (kgs):
    1100
  • Rear 3-Point Hitch Lift Capacity (lbs):
    2425
  • Steering Pump Output (gpm):
    9.9
  • Steering Pump Output (lpm):
    37.5

INSTRUMENTATION

  • Fuel Level Warning Type:
    Gauge

PTO

  • PTO Horsepower (bhp):
    36
  • PTO Horsepower (kW):
    26.8
  • PTO Location(s):
    Rear
  • PTO Type:
    Independent
  • Rear PTO RPM:
    584

STEERING

  • Steering Type:
    Power

TECHNICAL SPECIFICATIONS

  • Dry Weight (kg):
    1738
  • Dry Weight (lbs):
    3831
  • Fuel Capacity (gal):
    11.8
  • Fuel Capacity (l):
    45
  • Ground Clearance (in):
    15.5
  • Ground Clearance (mm):
    394
  • Height (in):
    98.4
  • Height (mm):
    2500
  • Length (ft):
    10.62
  • Length (ft/ft):
    10
  • Length (ft/in):
    7.4
  • Length (in):
    127.4
  • Length (mm):
    3236
  • Turning Radius (ft):
    9.2
  • Turning Radius (m):
    2.8
  • Wheelbase (in):
    71.1
  • Wheelbase (mm):
    1806
  • Width (in):
    64.9
  • Width (mm):
    1649

TRANSMISSION

  • Clutch Type:
    Not Applicable
  • Maximum Forward Speed (kph):
    31.4
  • Maximum Forward Speed (mph):
    19.5
  • Number of Ranges:
    4
  • Transmission Type:
    Hydrostatic

WHEELS & TIRES

  • Front Tire (Full Spec):
    27 x 8.5 - 15
  • Front Tire Diameter (in):
    27
  • Front Tire Width:
    8.5
  • Front Wheel Diameter:
    15
  • Rear Tire (Full Spec):
    41 x 14 - 20
  • Rear Tire Diameter (in):
    41
  • Rear Tire Width:
    14
  • Rear Wheel Diameter:
    20
  • Tread Type:
    Turf
  • Wheels Composition:
    Steel
