Yanmar
SA Series SA325
LOADER AND MIDMOUNT MOWER
Payments as low as: $279/month
*
Dealer Installed Accessories:
$7,316
Your Price: $23,466 USD
‹
›
Reset Zoom
X
‹
›
-
+
‹
›
This vehicle is getting attention.
174 people have recently viewed it.
Check Availability
Hi, my name is
First Name
Last Name
and I'm interested in this

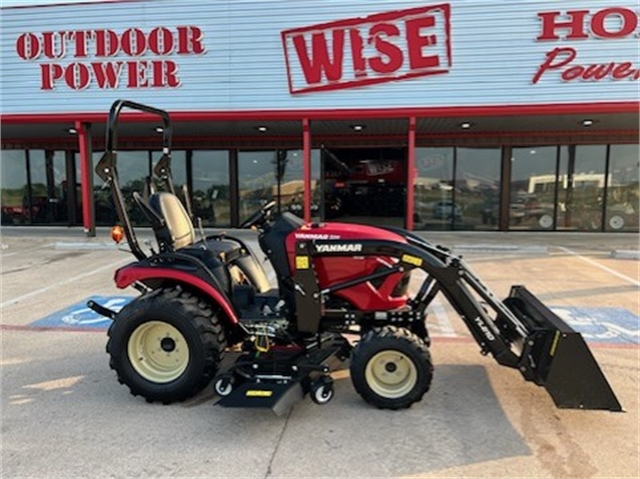

2023 Yanmar SA Series SA325 - LOADER AND MIDMOUNT MOWER
. I'm in the
Zip Code
area and you can reach me at
Email
or on my
Mobile
Home
Work
phone at
Phone
.
What is your preferred method of contact?
Email
Phone
Text
Questions/Comments
VehicleId
SubscriptionId
SubscriberId
Year
ModelName
MakeDivision
ProductTypeId
StyleName
ReturnURL
ModelNumber
Check Availability
Details
Status:
New
Vehicle:
2023 Yanmar SA Series SA325
Model Number:
SA325
Color:
Red / Black
Location:
Wise Honda
Warranty:
Manufacturer's w/ Extended Available
Specifications
BRAKES
Front Brake Type:
Wet Disc
Rear Brake Type:
Wet Disc
DRIVE LINE
Differential Lock Location:
Rear
Driveline Type:
4X4
ENGINE
Aspiration:
Natural
Bore (in):
3.15
Bore (mm):
80
Carburetion Type:
Fuel Injected
Cooling:
Liquid
Cylinders:
3
Displacement (ci):
77.2
Displacement (l):
1.3
Engine Brand Name:
Yanmar
Engine Model Code:
3TNV80F
Fuel Type:
Diesel
Horsepower (bhp):
23.9
Horsepower (kW):
17.8
Horsepower RPM:
3200
Stroke (in):
3.3
Stroke (mm):
84
Torque (Ft Lbs):
45.7
Torque (Nm):
62
EXTERIOR
Platform Layout:
Open
HYDRAULIC SYSTEM
Hydraulic Type:
Open Center
Implement Pump Output (gpm):
4.3
Implement Pump Output (lpm):
16.1
Pump Capacity (gpm):
8
Pump Capacity (lpm):
30.3
Rear 3-Point Hitch Category:
Category 1
Rear 3-Point Hitch Lift Capacity (kgs):
548
Rear 3-Point Hitch Lift Capacity (lbs):
1209
Steering Pump Output (gpm):
3.7
Steering Pump Output (lpm):
14.1
System Pressure (bar):
167.5
System Pressure (psi):
2429
INSTRUMENTATION
Fuel Level Warning Type:
Gauge
PTO
Mid PTO RPM:
2057
PTO Horsepower (bhp):
18.1
PTO Horsepower (kW):
13.5
PTO Location(s):
Rear / Mid
PTO Type:
Independent
Rear PTO RPM:
554
STEERING
Steering Type:
Power
TECHNICAL SPECIFICATIONS
Dry Weight (kg):
778
Dry Weight (lbs):
1715
Front Tread Width (in):
37.8
Front Tread Width (mm):
960
Fuel Capacity (gal):
6.1
Fuel Capacity (l):
23
Ground Clearance (in):
8.5
Ground Clearance (mm):
215
Height (in):
85.8
Height (mm):
2180
Length (ft):
8.82
Length (ft/ft):
8
Length (ft/in):
9.8
Length (in):
105.8
Length (mm):
2688
Rear Tread Width (in):
40.5
Rear Tread Width (mm):
1028
Turning Radius (ft):
8.5
Turning Radius (m):
2.6
Wheelbase (in):
63
Wheelbase (mm):
1600
Width (in):
54.6
Width (mm):
1387
TRANSMISSION
Clutch Type:
Not Applicable
Maximum Forward Speed (kph):
19.6
Maximum Forward Speed (mph):
12.3
Number of Ranges:
2
Transmission Type:
Hydrostatic
WHEELS & TIRES
Front Tire (Full Spec):
23 x 8.50 - 12
Front Tire Diameter (in):
23
Front Tire Width:
8.5
Front Wheel Diameter:
12
Rear Tire (Full Spec):
12 - 16.5
Rear Tire Width:
12
Rear Wheel Diameter:
16.5
Tread Type:
Industrial
Wheels Composition:
Steel
