TYM

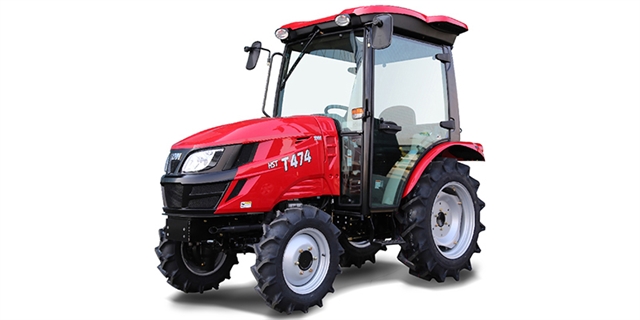

T474 CAB (HST)
CALL FOR BEST PRICE
79 people have recently viewed it.
Status:
NewVehicle:
2024 TYM T474 CAB (HST)Model Number:
T474CABLocation:
Wise HondaWarranty:
Manufacturer's w/ Extended Available
BRAKES
Front Brake Type:
Wet DiscRear Brake Type:
Wet Disc
DRIVE LINE
ENGINE
Aspiration:
NaturalCarburetion Type:
Fuel InjectedCooling:
LiquidCylinders:
4Displacement (ci):
139.5Displacement (l):
2.286Engine Brand Name:
KukjeEngine Model Code:
A2300N2Fuel Type:
DieselHorsepower (bhp):
48.3Horsepower (kW):
36Horsepower RPM:
2600
EXTERIOR
Platform Layout:
Full Cab
HYDRAULIC SYSTEM
Implement Pump Output (gpm):
7.7Implement Pump Output (lpm):
29Number of Standard Remote Valves:
1Pump Capacity (gpm):
11.9Pump Capacity (lpm):
45.1Rear 3-Point Hitch Category:
Category 1Rear 3-Point Hitch Lift Capacity (kgs):
684Rear 3-Point Hitch Lift Capacity (lbs):
1508Steering Pump Output (gpm):
4.3Steering Pump Output (lpm):
16.1
INSTRUMENTATION
Fuel Level Warning Type:
Gauge
PTO
PTO Horsepower (bhp):
35.9PTO Horsepower (kW):
26.4PTO Location(s):
RearPTO Type:
IndependentRear PTO RPM:
540
STEERING
TECHNICAL SPECIFICATIONS
Dry Weight (kg):
1636Dry Weight (lbs):
3607Fuel Capacity (gal):
9Fuel Capacity (l):
34Ground Clearance (in):
12.8Ground Clearance (mm):
325Height (in):
94.5Height (mm):
2400Length (ft):
10.92Length (ft/ft):
10Length (ft/in):
11Length (in):
131Length (mm):
3320Turning Radius (ft):
8.9Turning Radius (m):
2.7Wheelbase (in):
69.7Wheelbase (mm):
1770Width (in):
54.5Width (mm):
1385
TRANSMISSION
Clutch Type:
DryMaximum Forward Speed (kph):
24Maximum Forward Speed (mph):
14.9Number Of Speeds (Forward):
12Number Of Speeds (Reverse):
12Transmission Type:
Synchro-Shift
WHEELS & TIRES
Front Tire (Full Spec):
10 - 16.50Front Tire Width:
10Front Wheel Diameter:
16.5Rear Tire (Full Spec):
43 x 16.00 - 20Rear Tire Diameter (in):
43Rear Tire Width:
16Rear Wheel Diameter:
20Tread Type:
IndustrialWheels Composition:
Steel
