2023 SKYJACK
| SJ3226 | ||
|---|---|---|
| Work Height | 31' 7" (9.63 m) | |
| Raised Platform Height | 25’ 7” (7.79 m) | |
| Lowered Platform Height | 46” (1.17 m) | |
| Overall Width | 32” (0.81 m) | |
| Overall Length | 91.6” (2.32 m) | |
| Stowed Height (Rails Up) | 90” (2.29 m) | |
| Stowed Height (Rails Down) | 76” (1.93 m) | |
| Platform Width (Inside Dimension) | 28” (0.71 m) | |
| Platform Length (Inside Dimension) | 83” (2.11 m) | |
| Extension Deck (Roll Out) | 3’ (0.91 m) | |
| Wheelbase | 69” (1.75 m) | |
| Weight | 4,190 lbs (1,900 kg) | |
| Gradeability | 25% | |
| Turning Radius (Inside) | 43” (1.09 m) | |
| Turning Radius (Outside) | 104” (2.64 m) | |
| Lift Time (With Rated Load) | 47 sec | |
| Lower Time (With Rated Load) | 41 sec | |
| Drive Speed (Stowed) | 2.4 mph (3.9 km/h) | |
| Drive Speed (Raised) | 0.6 mph (1.0 km/h) | |
| Maximum Drive Height | Full Height | |
| Capacity | 500 lbs (227 kg) | |
| Capacity (Overall) | ||
| Distributed Capacity (Main Platform) | 250 lbs (113 kg) | |
| Distributed Capacity (Extension Deck) | 250 lbs (113 kg) | |
| Local Floor Load (With Rated Load) | 104 psi (718 kPa) | |
| Overall Floor Load (With Rated Load) | 241 psf (1177 kg/ m2) | |
| Maximum # of Persons | 2 | |
| Tire Type | Solid, N/M | |
| Tire Size | 16 x 5 x 12 |
- Status:New

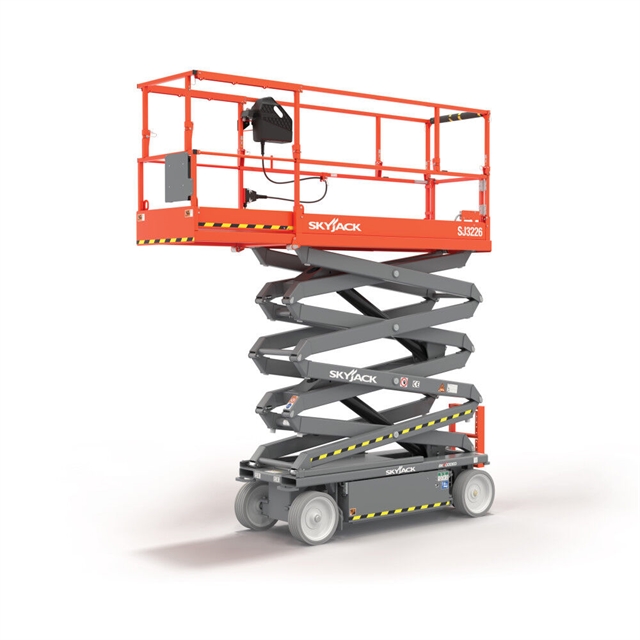

- Vehicle:2023 SKYJACK SJ3226 SCISSOR LIFT
- Location:Wise Honda
- Warranty:Manufacturer's w/ Extended Available
