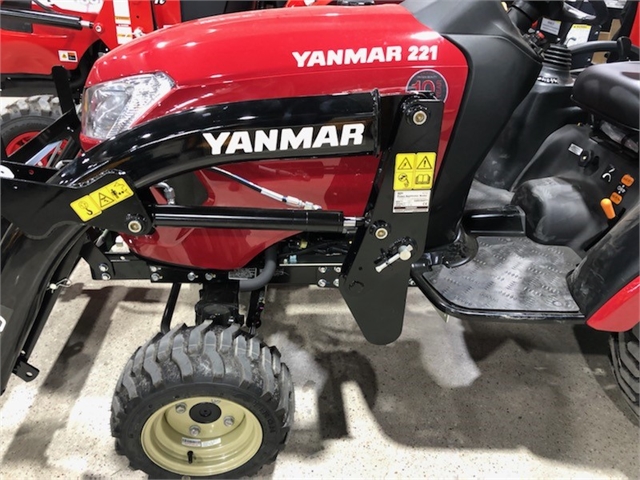

Yanmar SA221 YL110 LOADER  Featured

Payments as low as: $227/month *
Dealer Installed Accessories: $3,294
Your Price: $16,357 USD

106 people have recently viewed it.
Check Availability Hi, my name is and I'm interested in this 2022 Yanmar SA Series SA221 . I'm in the area and you can reach me at or on my phone at .
  • Status:
    New
  • Vehicle:
    2022 Yanmar SA221 YL110 LOADER
  • Model Number:
    SA221
  • Color:
    Red / Black
  • Location:
    Wise Honda
  • Warranty:
    Manufacturer's w/ Extended Available

BRAKES

  • Front Brake Type:
    Wet Disc
  • Rear Brake Type:
    Wet Disc

DRIVE LINE

  • Differential Lock Location:
    Rear
  • Driveline Type:
    4X4

ENGINE

  • Aspiration:
    Natural
  • Bore (in):
    2.92
  • Bore (mm):
    74
  • Carburetion Type:
    Fuel Injected
  • Cooling:
    Liquid
  • Cylinders:
    3
  • Displacement (ci):
    60.6
  • Displacement (l):
    1
  • Engine Brand Name:
    Yanmar
  • Engine Model Code:
    3TNM74F
  • Fuel Type:
    Diesel
  • Horsepower (bhp):
    21.5
  • Horsepower (kW):
    16
  • Horsepower RPM:
    3200
  • Stroke (in):
    3.03
  • Stroke (mm):
    77
  • Torque (Ft Lbs):
    39.4
  • Torque (Nm):
    53.5

EXTERIOR

  • Platform Layout:
    Open

HYDRAULIC SYSTEM

  • Hydraulic Type:
    Open Center
  • Implement Pump Output (gpm):
    4.3
  • Implement Pump Output (lpm):
    16.3
  • Pump Capacity (gpm):
    8
  • Pump Capacity (lpm):
    30.3
  • Rear 3-Point Hitch Category:
    Category 1
  • Rear 3-Point Hitch Lift Capacity (kgs):
    300
  • Rear 3-Point Hitch Lift Capacity (lbs):
    660
  • Steering Pump Output (gpm):
    3.7
  • Steering Pump Output (lpm):
    14.1
  • System Pressure (bar):
    130
  • System Pressure (psi):
    1891

INSTRUMENTATION

  • Fuel Level Warning Type:
    Gauge

PTO

  • Mid PTO RPM:
    2057
  • PTO Horsepower (bhp):
    15.6
  • PTO Horsepower (kW):
    11.6
  • PTO Location(s):
    Rear / Mid
  • PTO Type:
    Independent
  • Rear PTO RPM:
    554

STEERING

  • Steering Type:
    Power

TECHNICAL SPECIFICATIONS

  • Dry Weight (kg):
    697
  • Dry Weight (lbs):
    1537
  • Front Tread Width (in):
    35.2
  • Front Tread Width (mm):
    894
  • Fuel Capacity (gal):
    6.1
  • Fuel Capacity (l):
    23
  • Ground Clearance (in):
    6.4
  • Ground Clearance (mm):
    163
  • Height (in):
    82.3
  • Height (mm):
    2090
  • Length (ft):
    8.51
  • Length (ft/ft):
    8
  • Length (ft/in):
    6.1
  • Length (in):
    102.1
  • Length (mm):
    2594
  • Rear Tread Width (in):
    35.2
  • Rear Tread Width (mm):
    894
  • Turning Radius (ft):
    7.9
  • Turning Radius (m):
    2.4
  • Wheelbase (in):
    57.9
  • Wheelbase (mm):
    1400
  • Width (in):
    47.3
  • Width (mm):
    1200

TRANSMISSION

  • Clutch Type:
    Not Applicable
  • Maximum Forward Speed (kph):
    13.8
  • Maximum Forward Speed (mph):
    8.6
  • Number of Ranges:
    1
  • Transmission Type:
    Hydrostatic

WHEELS & TIRES

  • Front Tire (Full Spec):
    18 x 8.50 - 10
  • Front Tire Diameter (in):
    18
  • Front Tire Width:
    8.5
  • Front Wheel Diameter:
    10
  • Rear Tire (Full Spec):
    26 x 12.0 - 12
  • Rear Tire Diameter (in):
    26
  • Rear Tire Width:
    12
  • Rear Wheel Diameter:
    12
  • Tread Type:
    Industrial
  • Wheels Composition:
    Steel
