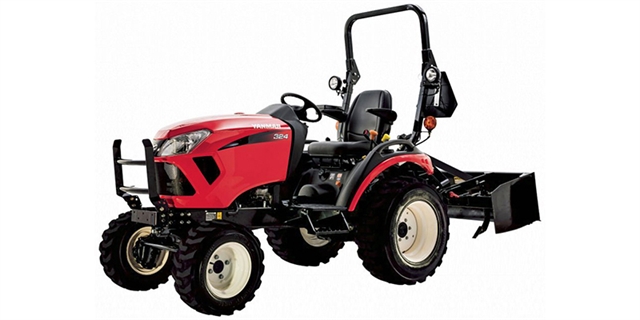

Yanmar SA Series SA324

Payments as low as: $260/month *
Dealer Installed Accessories: $3,790
Your Price: $19,069 USD
Check Availability Hi, my name is and I'm interested in this 2022 Yanmar SA Series SA324 . I'm in the area and you can reach me at or on my phone at .
  • Status:
    New
  • Vehicle:
    2022 Yanmar SA Series SA324
  • Model Number:
    SA324
  • Color:
    Red / Black
  • Location:
    Wise Honda
  • Warranty:
    Manufacturer's w/ Extended Available

BRAKES

  • Front Brake Type:
    Wet Disc
  • Rear Brake Type:
    Wet Disc

DRIVE LINE

  • Differential Lock Location:
    Rear
  • Driveline Type:
    4X4

ENGINE

  • Aspiration:
    Natural
  • Bore (in):
    3.15
  • Bore (mm):
    80
  • Carburetion Type:
    Fuel Injected
  • Cooling:
    Liquid
  • Cylinders:
    3
  • Displacement (ci):
    77.2
  • Displacement (l):
    1.3
  • Engine Brand Name:
    Yanmar
  • Engine Model Code:
    3TNV80F
  • Fuel Type:
    Diesel
  • Horsepower (bhp):
    23.9
  • Horsepower (kW):
    17.8
  • Horsepower RPM:
    3200
  • Stroke (in):
    3.3
  • Stroke (mm):
    84
  • Torque (Ft Lbs):
    45.7
  • Torque (Nm):
    62

EXTERIOR

  • Platform Layout:
    Open

HYDRAULIC SYSTEM

  • Hydraulic Type:
    Open Center
  • Implement Pump Output (gpm):
    4.3
  • Implement Pump Output (lpm):
    16.3
  • Pump Capacity (gpm):
    8
  • Pump Capacity (lpm):
    30.3
  • Rear 3-Point Hitch Category:
    Category 1
  • Rear 3-Point Hitch Lift Capacity (kgs):
    548
  • Rear 3-Point Hitch Lift Capacity (lbs):
    1209
  • Steering Pump Output (gpm):
    3.7
  • Steering Pump Output (lpm):
    14.1
  • System Pressure (bar):
    167.5
  • System Pressure (psi):
    2429

INSTRUMENTATION

  • Fuel Level Warning Type:
    Gauge

PTO

  • Mid PTO RPM:
    2057
  • PTO Horsepower (bhp):
    18.1
  • PTO Horsepower (kW):
    13.5
  • PTO Location(s):
    Rear / Mid
  • PTO Type:
    Independent
  • Rear PTO RPM:
    554

STEERING

  • Steering Type:
    Power

TECHNICAL SPECIFICATIONS

  • Dry Weight (kg):
    778
  • Dry Weight (lbs):
    1715
  • Front Tread Width (in):
    37.8
  • Front Tread Width (mm):
    960
  • Fuel Capacity (gal):
    6.1
  • Fuel Capacity (l):
    23
  • Ground Clearance (in):
    8.5
  • Ground Clearance (mm):
    215
  • Height (in):
    85.8
  • Height (mm):
    2180
  • Length (ft):
    8.82
  • Length (ft/ft):
    8
  • Length (ft/in):
    9.8
  • Length (in):
    105.8
  • Length (mm):
    2688
  • Rear Tread Width (in):
    40.5
  • Rear Tread Width (mm):
    1028
  • Turning Radius (ft):
    8.5
  • Turning Radius (m):
    2.6
  • Wheelbase (in):
    63
  • Wheelbase (mm):
    1600
  • Width (in):
    54.6
  • Width (mm):
    1387

TRANSMISSION

  • Clutch Type:
    Not Applicable
  • Maximum Forward Speed (kph):
    19.6
  • Maximum Forward Speed (mph):
    12.3
  • Number of Ranges:
    2
  • Transmission Type:
    Hydrostatic

WHEELS & TIRES

  • Front Tire (Full Spec):
    23 x 8.50 - 12
  • Front Tire Diameter (in):
    23
  • Front Tire Width:
    8.5
  • Front Wheel Diameter:
    12
  • Rear Tire (Full Spec):
    12 - 16.5
  • Rear Tire Width:
    12
  • Rear Wheel Diameter:
    16.5
  • Tread Type:
    Industrial
  • Wheels Composition:
    Steel
