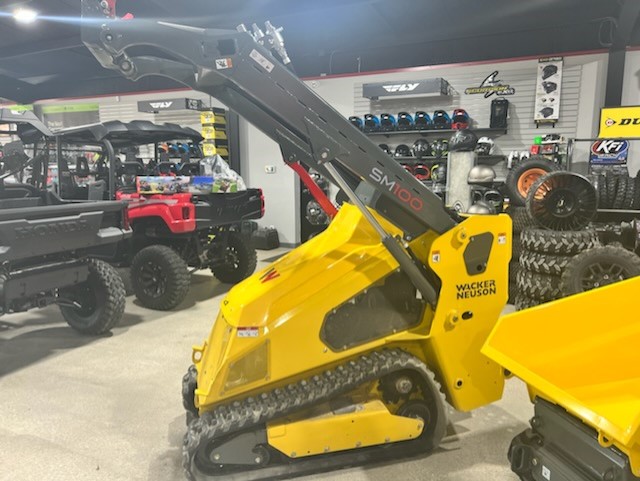

Wacker Neuson SM100 Utility Track Loader that will provide with low maintenance this is to reduce the maintenance cost. The SM100 for any type of construction work such as landscape project, light site work and general material handling. The narrow width will fit through doorways, gates and other tight spaces.
Technical specifications:
• Rated Operating Capacity @35%: 1,000 lbs.
• Tipping load: 2,857 lbs.
• Operating weight: 3,300 lbs.
• Travel speed: 5.2 mph
• Operating pressure - ground: 4.1 psi
• Flow rate - auxiliary: 13 US gpm
• Pressure - auxiliary: 3,045 psi
• Engine / Motor: Yanmar 3TNV80FT
• Engine / Motor type: liquid-cooled, 4-cycle, 3-cylinder, turbocharged diesel engine.
• Power: 24.7 hp
• Torque - max. @1800 rpm: 62.6 lbf.
• Idling speed low: 1,200 rpm
• Idling speed high: 2,600 rpm
• Fuel tank capacity: 14.1 US gal
Dimensions:
• Overall length with bucket: 108 in
• Overall length without bucket: 84.8 in
• Overall width: 35.5 in
• Overall height: 58.2 in
• Hinge pin height: 85.7 in
• Dump height max: 62.8 in
• Bucket rollback at ground level: 25 °
• Bucket rollback at max. stroke height: 92 °• Dump angle at max height: 42 °
• Ground clearance: 7.8 in
• Track length on ground: 43 in
• Angle of departure: 25.6 °
